PVC is one of the most widely used plastics. PVC plastic material is a non-crystalline material. Transparent PVC sheet is widely used in the Packages,Sign,Advertisement,Print ,Construction And So on.
offset/UV/screen printing, screen prinitng, vacuum forming, medical packing, package box, stationery sheet, and other area to make label.
Item NO.:
FXDPVC001Order(MOQ):
1000 KGSPayment:
T/T,L/CPrice:
$1.5/KGSProduct Origin:
ChinaColor:
ClearShipping Port:
Xiamen portLead Time：
8 daysPrice range:
$1.2-1.8/KGSProduct Detail

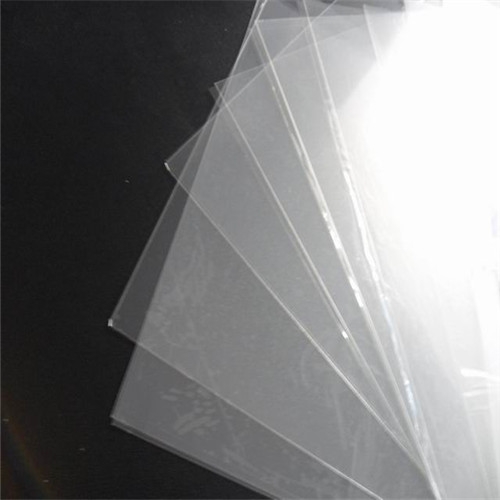

clear rigid pvc sheet for thermoforming
Description | Rigid PVC sheet(extruded plastic board) PVC Thanspanrent Sheets | ||
Size | Length | According to the customers’ request | |
Width | 0.915-1.3m | ||
Thickness | 0.25-15mm | ||
1000*2000mm | 1300*2000mm | 1220*2440mm | |
We can produce other special sizes according to the customers’ request. | |||
Colours | Transparnet light blue(usually),white.sapphire blue,dark brown,and other | ||
characteristics | High intensity,high degree of transparency | ||
High weather resistance,better physical properties | |||
Non-toxic | |||
Health,good surface brightness | |||
No crack ,no bubbles, | |||
Remarks | Industrial PVC sheet has a maximum long term service temperature of 60°C and also has a melting point of 75°C. Although PVC has a tensile strength of about 5Mpa,it is not the toughest engineering plastic and althougth PVC is durable,it can fracture to large impact. | ||
Application | Equipment protection board,interior,blisster,printingindustry,packing industry surface display | ||
Features:
1.High chemical stability,fine anti-fire,super-transparent,
2.Highly UV.stabilized,good mechanical properties,high hardness and strength,
3.The sheet aslo has well aging resistance,good self-extinguishing property and reliable insularity,
4.Moreover the sheet is waterproof and has very good smooth surface,and is non deformable.
5.Application:chemical industry,oil industry,galvanization,water purification equipments, environment protection equipments,medical appliance and so on.
6.important item: the sheet anti-stastic,anti-UV,anti-sticky
Feature :
| Name of index | Index |
| Thickness Tolerance | According to GB(higher than GB) |
| Density | 1.3-1.5 g/cm3 |
| Tensile-Strength(lengthwise,crosswise),MPa | ≥52.0 |
| Impact strength(cut)(four-way)KJ/M2 | ≥5.0 |
| Drop impact strenght | No fracture |
| Vicat softening piont,°C Decoration plate Industrial plate | ≥75.0 ≥80.0 |
| Heating size change rate, % Lengthwise Crosswise | -5.0--+5.0 -3.0--+3.0 |
| Width Length Diagonal line | Deviation 0-3mm Deviation 0-8mm |
